Profile Laminating Machines

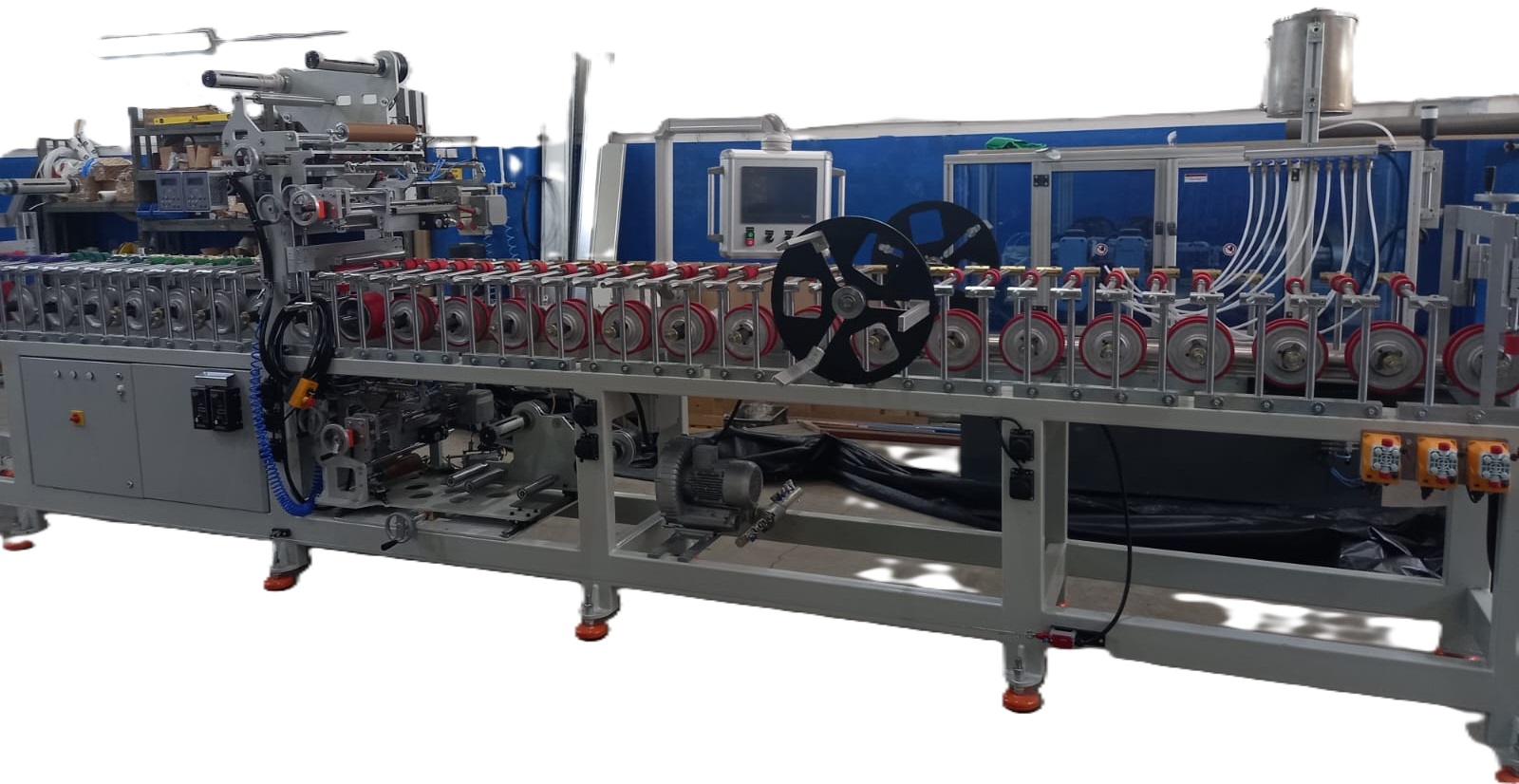

DOUBLE SIDE PROFILE LAMINATION MACHINES

Double side profile lamination machine for the application of PVC , CPL, PP and Paper foils on MDF, Al or PVC profiles and panels by using polyurethane hot melt adhesive.

MAIN TECHNICAL SPECIFICATIONS

  • Model: SLM 350 WDS-P
  • Type of profiles to be laminated : Al, PVC
  • Type of foils to be wrapped : PVC(0,15mm÷0,35mm).
  • Type of adhesive : PUR Hot melt.
  • Maximum Line Speed : 25 m/min.
  • Driving Power : 2,2 KW
  • Heating Power : 30 KW.
  • Maximum Profile Width : 350 mm.
  • Maximum Profile Height : 140 mm.
  • Maximum Foil Width : 350 mm.
  • Effective Chassis Length : 7000 mm.
