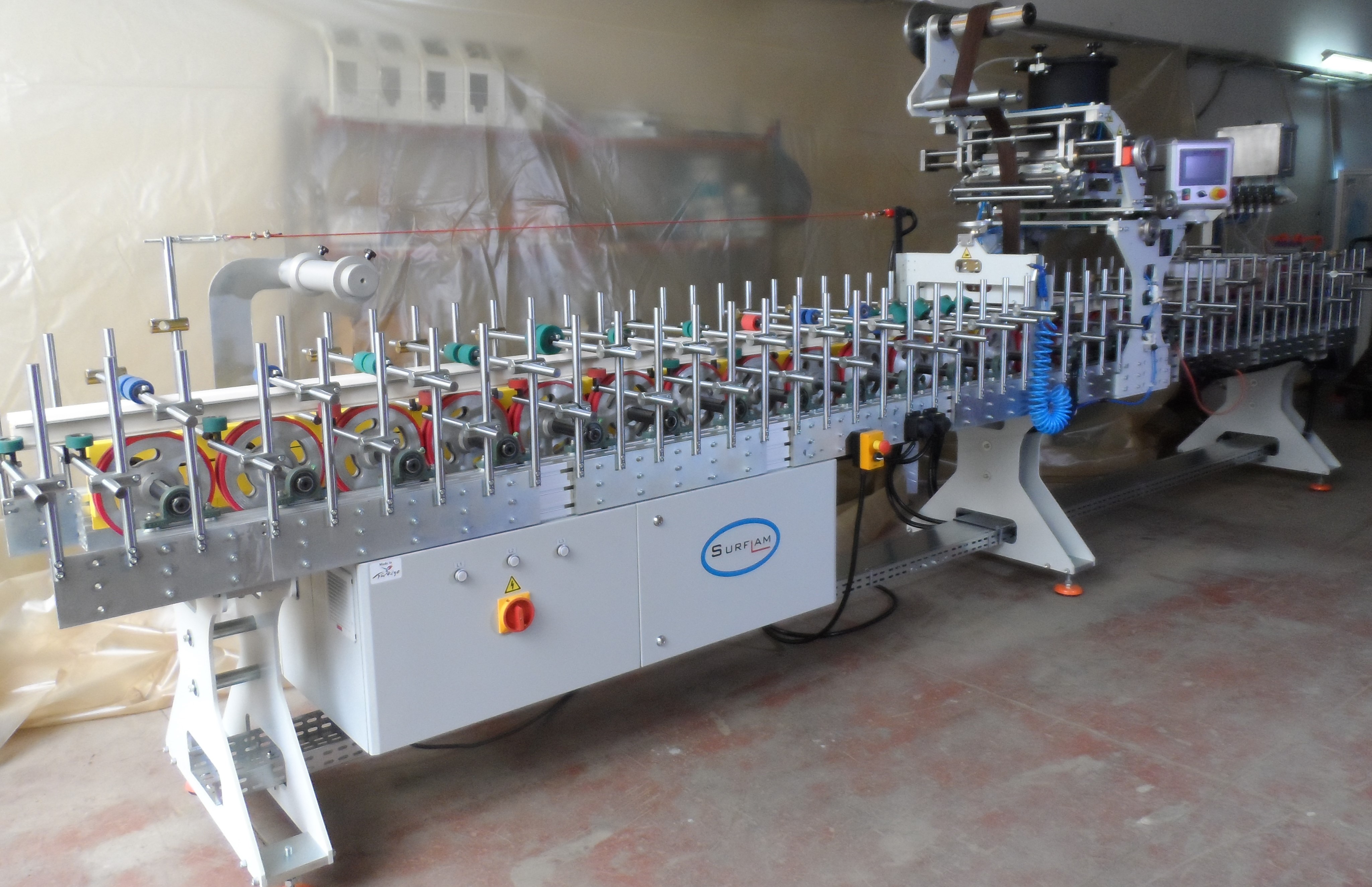

New generation economical profile laminating machines.

New Generation Compact Lamination Machines

Compact profile lamination machine for PVC, PP, CPL and paper foils on MDF, Al and PVC and wooden profiles using PUR Hot melt glue.

MAIN TECHNICAL SPECIFICATIONS

  • Model: SLM 300-CP
  • Type of profiles to be laminated : MDF, Wood, Al, PVC
  • Type of foils to be wrapped : PVC(0,15mm÷0,3mm), PP, CPL, Paper
  • Type of adhesive : PUR Hot melt.
  • Maximum Line Speed : 25 m/min(depends on the profile type and geometry).
  • Driving Power : 1,5 Kw.
  • Heating Power : 20 Kw.
  • Maximum Profile Width : 300 mm.
  • Maximum Profile Height : 120 mm.
  • Maximum Foil Width : 300 mm.
  • Effective Chassis Length : 6500 mm.
