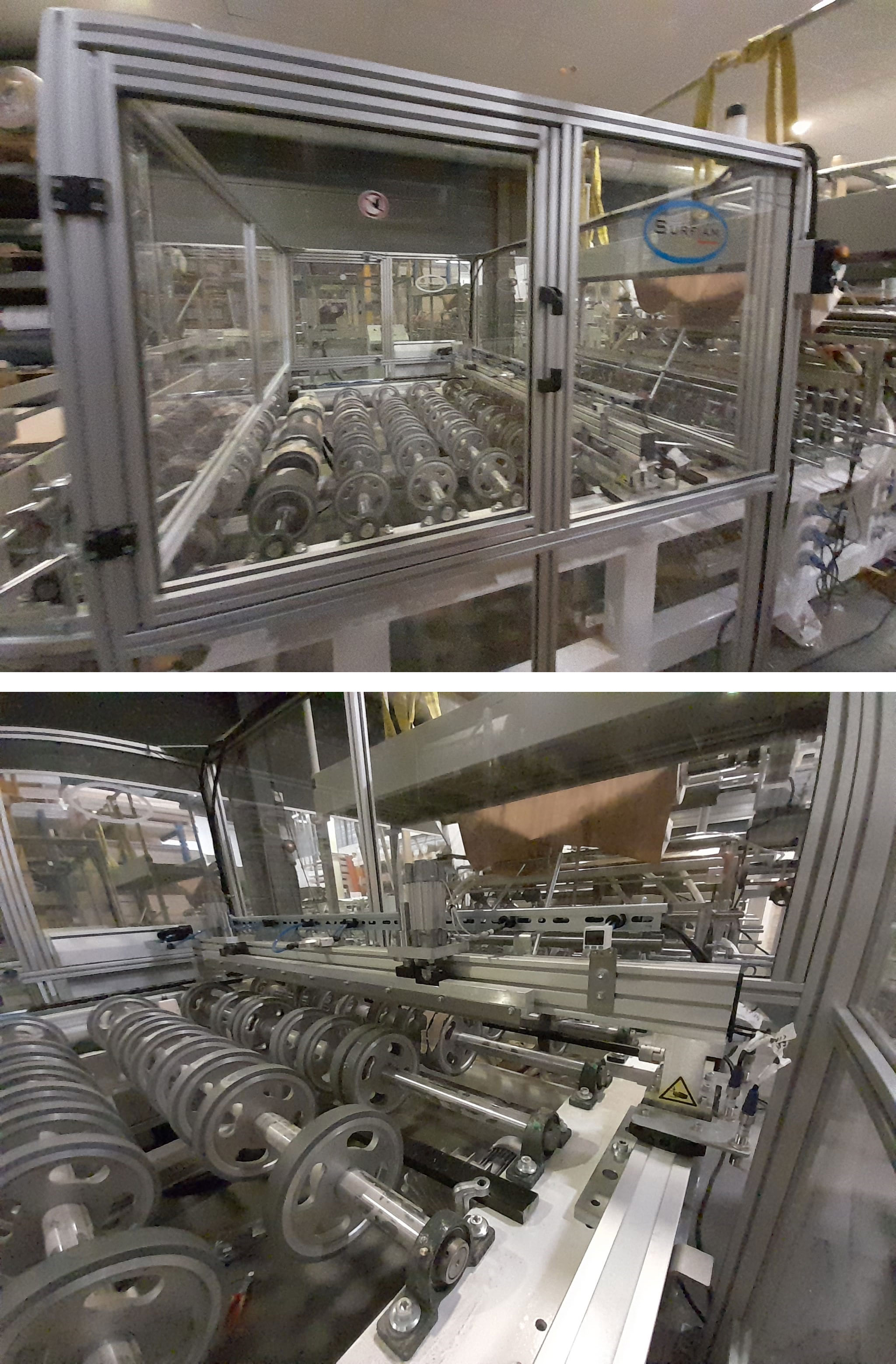

Guillotine Type Automatic Panel Separator Machines
SFG 1400 SPECIAL PANEL SEPARATOR MACHINE
- Types of cutting method: Guillotine system with “safety springs” construction in order to protect the raw material and the guillotine knife unit form deformation in case of sensor failure.
- Allowed types of foils which can be cutted during separation: PVC, PP(max.300 µm), Paper(max.300 µm).
- Vertical movement control of guillotine: By pneumatic cylinders.
- X axis(lamination direction) movement and control: Servomotor and ball-screw driving system.
- Space detection method between two panels: Special lazer sensor.
- Line speed: 0-15 m/min.
- Maximum allowed panel width: 1400 mm.
- Main control unit: PLC control system with touch screen panel and corresponding electrical control cabin equipped due to CE safety regulations.
- Line speed synchronization : Via contact method of rotational encoder system.
- Safety System: The machine is protected with safety housing and necessary safety sensors accord to “CE” standard regulations.
TECHNICAL SPECIFICATIONS
