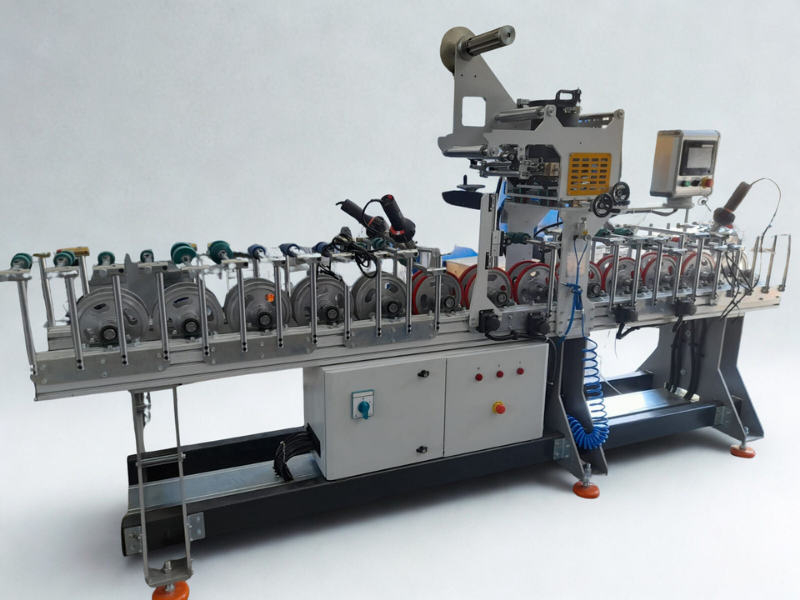

IN-LINE LAMINATION MACHINES

Profile Lamination Machine for the application of PVC foils on PVC profiles and panels using polyurethane hot melt adhesive
in IN-LINE(On the extrusion exit) method.

MAIN TECHNICAL SPECIFICATIONS

• Model: SLM 300-PI
• Profiles to be laminated:PVC
• Foils to be wrapped: PVC (0,15mm-0,35mm)
• Adhesive: PUR Hot melt.
• Line Speed: (0÷5) m/min.
• Driving Power: IN-LINE
• Heating Power: 18 KW.
• Profile Width: (25÷300) mm.
• Profile Height(Max.): 140 mm.
